High Accuracy Portable Integrated Metal Hardness Tester For Narrow Space

Name: High Accuracy Portable Integrated Metal Hardness Tester For Narrow Space
Brand: SADT
Price: 100 USD

High Accuracy Portable Integrated Metal Hardness Tester For Narrow Space Manufactures

Brand Name : SADT

Model Number : HARTIP1500

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1set

Payment Terms : T/T, Western Union

Supply Ability : 500 Piece/Pieces per Month

Delivery Time : within 3 workdays after receipt of your advanced payment

Packaging Details : Delivery package: carton

Price : USD100-300/Pcs

Principle : Leeb hardness measurement

Hardness scale : HL/HRC/HRB/HB/HV/HS

Materials : 9 common metal materials

Color : Red

Net weight (g) : 150

Dimension (mm) : 100x60x33

Standards : ASTM A956, DIN 50156, GB/T 17394-1998

Warranty : 1 year

Contact Now

High Accuracy Portable Integrated Metal Hardness Tester For Narrow Space

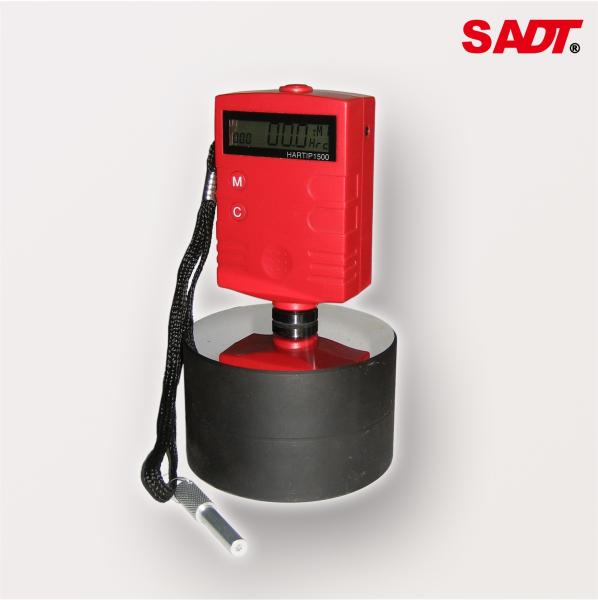

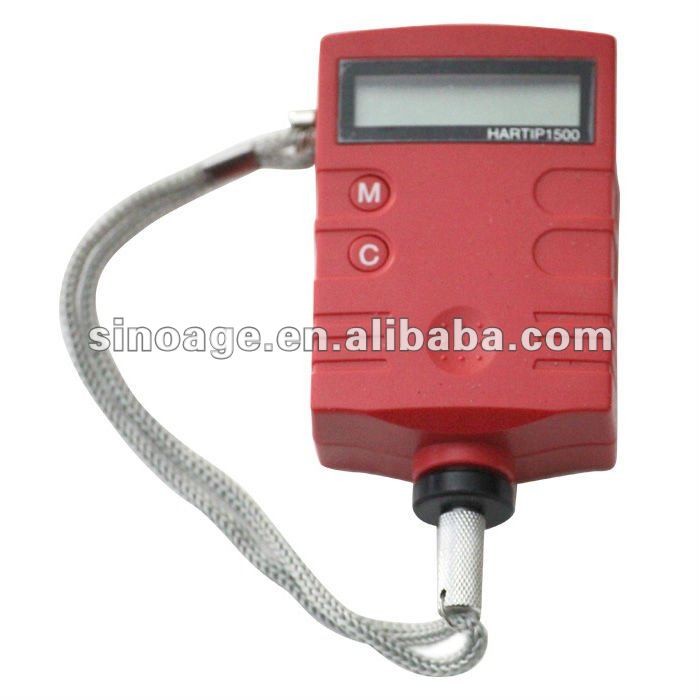

HARTIP1500 is an integrated handheld metal hardness tester that combines impact device (probe) and
processor into one unit.
The size is much shorter than normal impact device, which lets HARTIP1500 can meet not only normal measurements, but can take measurements at narrowed space as well.
HARTIP 1500 is suitable for testing hardness of almost all Ferrous and Nonferrous materials. With our new technology, its accuracy is improved to a higher level than normal type.
HARTIP 1500 is one of the most economic hardness testers.

KEY FEATURES

•Rugged and modular design
•High accuracy
•Palm size for narrow space
•Built-in impact device
•Customer re-calibration allowed
•Test in any directions

Applications:

Hardness tests on installed machines or steel structures: e.g. on heavy and largework-piece or on permanently installed system parts.
Rapid testing of multiple measuring areas for examination of hardness variations over larger regions.
Measuring hardness for produced parts at production line.
Identifying metallic material stored in a warehouse.
Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.

Specifications:


SADT HARTIP 1500 hardness tester
Principle	Leeb hardness measurement
Accuracy	±0.4% @ HL=800 / ±3HL
Display	LCD with backlight
Hardness scale	HL/HRC/HRB/HB/HV/HS
Measuring range	HL170-960/ HRC17-70/ HRB13-109/ HB20-655/ HV80-940/ HS32-99.5
Impact device	D (Internal)
Materials	9 common metal materials
Memory	99 data
Statistics function	Average / Max. / Min.
Re-calibration	Allowed by user
Indicator	Low battery
Auto power off	Auto
Power supply	9V alkaline battery x 1
Working environment	-10~+45ºC
Dimension (mm)	100x60x33
Net weight (g)	150
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

High Accuracy Portable Integrated Metal Hardness Tester For Narrow Space
